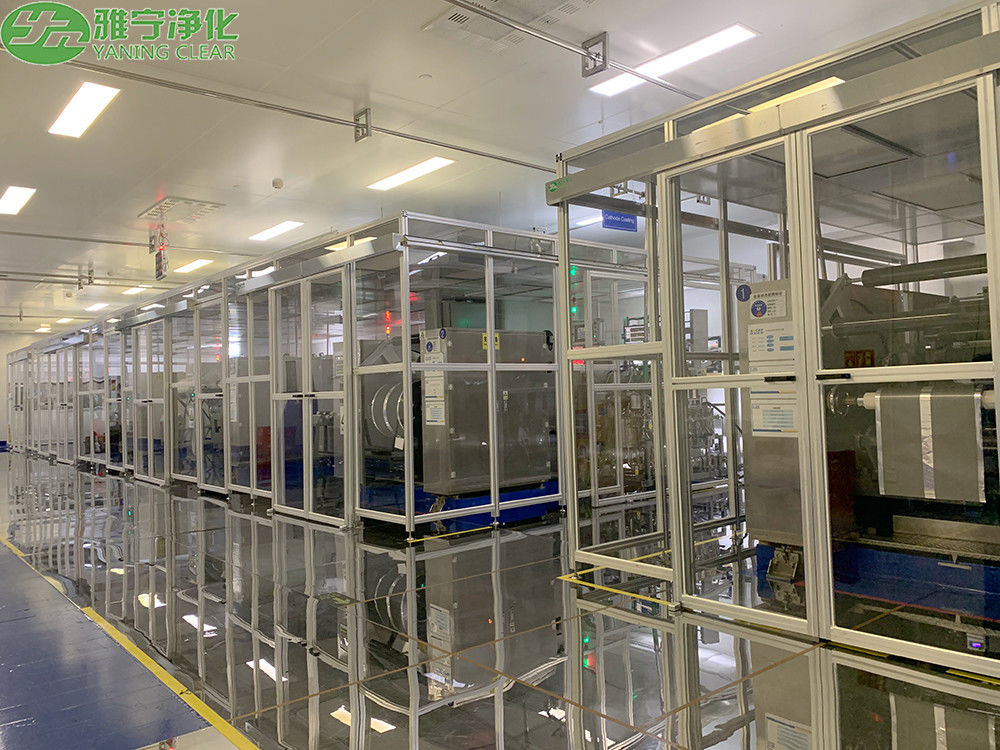

Yaning Industry Positive Clean Room Contractors Class 100 Hard Wall Clean Booth

Name: Yaning Industry Positive Clean Room Contractors Class 100 Hard Wall Clean Booth
Brand: Hongkong Yaning Purification industrial Co.,Limited
SKU: YN-CLB-01
Price: 5,400.00 USD
Availability: InStock

Productdetails

Plaats van herkomst: Dongguan, Guangdong, China

Merknaam: YANING

Certificering: CE/ISO

Modelnummer: YN-CLB-01

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1 set

Prijs: $4000-6800/set

Verpakking Details: triplex

Levertijd: 7 ~ 25 dagen op basis van de hoeveelheid

Betalingscondities: T/T, Western Union, MoneyGram

Levering vermogen: 1000 sets/maand

Krijg Beste Prijs

Chat Nu

Productdetails

Productbeschrijving

Productdetails

Markeren:
                                                                                                                                                                                                                                                Hard wall clean booth, Class 100 clean room, Positive pressure cleanroom contractors


Kader:	Aluminium/verz	Muur:	Plexiglas
Klas:	100	Efficiëntie:	99,999%
Schijfkast:	1 set	After-sales service verstrekt:	Ingenieurs beschikbaar voor servicemachines in het buitenland

Kader:	Aluminium/verz
Muur:	Plexiglas
Klas:	100
Efficiëntie:	99,999%
Schijfkast:	1 set
After-sales service verstrekt:	Ingenieurs beschikbaar voor servicemachines in het buitenland

Productbeschrijving

Products Description

Clean room is a local high clean environment can provide air purification equipment. It is the most convenient to establish a simple clean room, clean shedmainly by the box, fan, early high efficiency air filter, damping layer, lamps and other components, shell spray. The product can be suspended, but also ground support, compact structure, easy to use. Can be used alone, but a number of connections to form a band clean area. At the same time can be in the general level of clean room in some area need high cleanliness of the place to do some local increase to reduce costs.

Fan from the top of the FFU inhalation of air, the initial effect of the filter, high efficiency filter, filtered clean air in the entire wind surface to 0.45m/s ± 20% of the wind speed sent to the clean shed. The formation of the current layer, so that clean air flow was vertical one-way flow, thus ensuring the work area required cleanliness.

Product Display

Product Paramenters

Model	YN-CS-23B	YN-CS-34A	YN-CS-68C
External dimension	210031002590	310041002590	610081002590
Work area dimension	200030002200	300040001900	600080002200
Cleanliness	10000Class(ISO6)	10000Class(ISO7)	10000Class(ISO8)
Air velocity	0.3-0.5m/s	0.3-0.5m/s	0.3-0.5m/s
Noise	≤65dB	≤65dB	≤65dB
Vibration Half Peak	≤5um	≤5um	≤5um
Light	40w*2	40W*4	40W*8
Power supply	220V/50Hz	220V/50Hz	220V/50Hz
Material	Framework: epoxy power coated steel/stainless/Aluminum Wall: Anti-static strip curtain/soft air curtain/Plexiglas

表格宽度最宽为750,超过750的部分及内容均无法展示

Features

1. Can be used alone or in combination.

2. Compared with civil-built or assembly-type 100 clean rooms, less investment, quicker results, easier installation and lower operating costs.

3. Modular structure, easy to improve cleanliness level, strong scalability, and high value of reuse

4. Easy to move (can be installed universal wheel)
